Self-locking baffles with spring - "Linear" and "Spiral"
Linear:

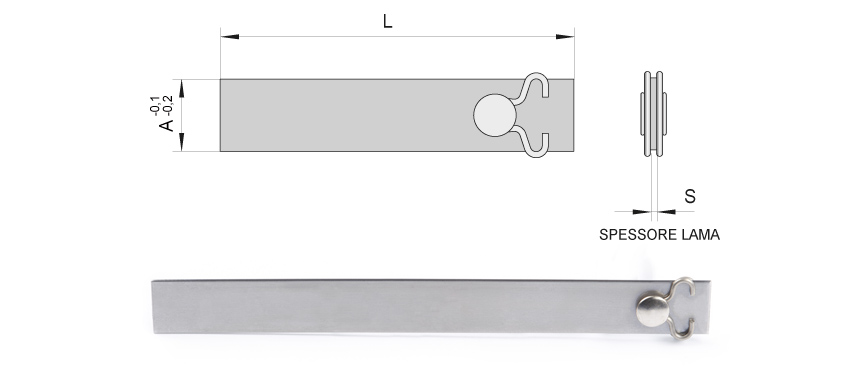

Self-locking baffles with spring
The self-locking baffles with spring allow to easily and effectively place a partition blade in a cooling channel. Locking the blade properly against rotation and along the axis of the hole is allowed by the spring pressure exerted against the surface of the hole.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
COD.
DXF.DXF
STP.STP
RLA-10x18
RLA-10x100
RLA-10x200
RLA-12x20
RLA-12x100
RLA-12x200
COD.
DXF.DXF
STP.STP
RLA-14x22
RLA-14x100
RLA-14x200
RLA-16x24
RLA-16x150
RLA-16x300
COD.
DXF.DXF
STP.STP
RLA-20x26
RLA-20x150
RLA-20x300
RLA-25x28
RLA-25x150
RLA-25x300
ARE YOU INTERESTED?
call +39.030.2120868
or > ask for information
Spiral:

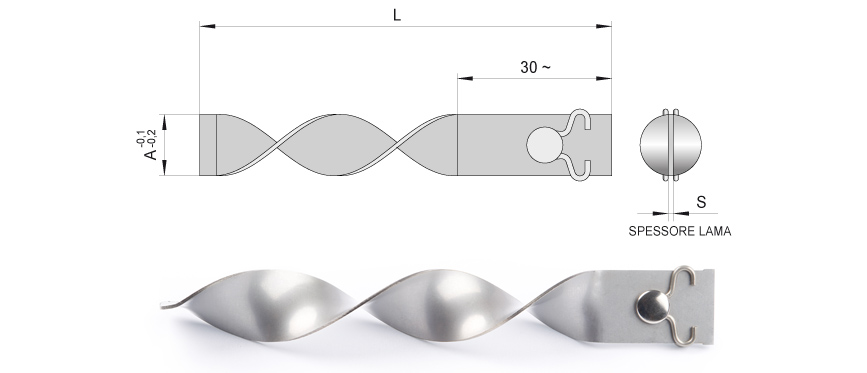

Self-locking baffles with spring
Self-locking baffles with spring allow for easy and effective placement of a partition blade in a cooling channel. Locking the blade properly against rotation and along the axis of the hole is allowed by the spring pressure exerted against the surface of the hole surface.
The spiral pattern ensures a uniform temperature throughout the entire surface and it also fosters a turbulent flow that allows for greater heat release.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
COD.
DXF.DXF
STP.STP
RLAS-10x100
RLAS-10x200
RLAS-12x100
RLAS-12x200
COD.
DXF.DXF
STP.STP
RLAS-14x100
RLAS-14x200
RLAS-16x150
RLAS-16x300
COD.
DXF.DXF
STP.STP
RLAS-20x150
RLAS-20x300
RLAS-25x150
RLAS-25x300
