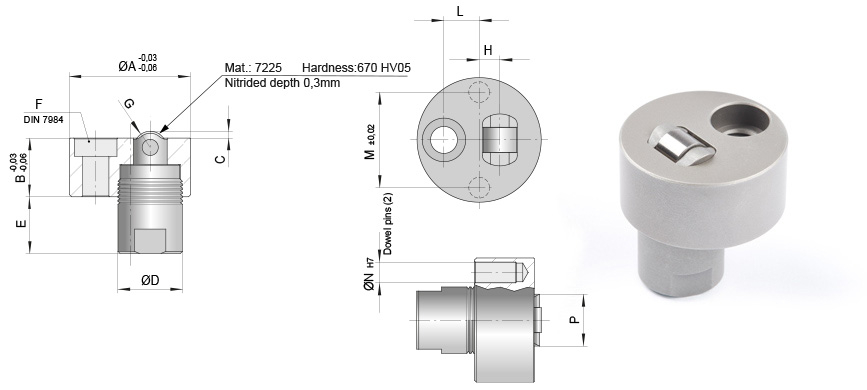

Roller slide retainer
The roller slide retainer is a slider locking device that is space-saving and with a high loading capacity. The system includes a roller locking device aimed at minimizing wear and is available with various load capacities.
| COD. | A | B | C | D | E | F | G | K |  |
|---|---|---|---|---|---|---|---|---|---|
| RIT10 | 25 | 11,5 | 1 | 14 | 14 | M5 | 6 | 10Kg |  |
| RIT20 | 30 | 14,5 | 1,5 | 16 | 14 | M6 | 8 | 20Kg | |
| RIT50 | 40 | 19,5 | 2 | 22 | 18 | M8 | 12 | 50Kg | |
