Straight baffles

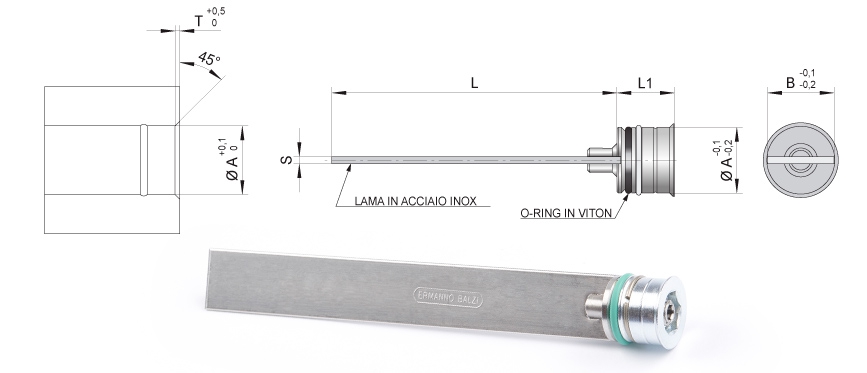

Set "F"

Straight baffles are based on rapid plug and unplug technology that simplifies and speeds up the machining of seats with regard to assembly and disassembly procedures of mould cooling components.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
We advise using set F baffles whenever the required tolerance (0/+0.1 mm) of the cooling channel is met and the surface quality is sufficient to guarantee the O-ring sealing.

COD.	A	B	T	S	L1	L
RL-6Fx100	6	6	0,7	1	7,5	100
RL-6Fx200	6	6	0,7	1	7,5	200
RL-6Fx300	6	6	0,7	1	7,5	300
RL-8Fx100	8	8	1	1	9,5	100
RL-8Fx200	8	8	1	1	9,5	200
RL-8Fx300	8	8	1	1	9,5	300
RL-10Fx100	10	10	1	1	12,5	100
RL-10Fx200	10	10	1	1	12,5	200
RL-10Fx300	10	10	1	1	12,5	300
RL-12Fx100	12	12	1	1	12,5	100
RL-12Fx200	12	12	1	1	12,5	200
RL-12Fx300	12	12	1	1	12,5	300
RL-14Fx100	14	14	1	1	12,5	100
RL-14Fx200	14	14	1	1	12,5	200
RL-14Fx300	14	14	1	1	12,5	300
RL-15Fx150	15	15	1,2	1	14	150
RL-15Fx300	15	15	1,2	1	14	300
RL-15Fx450	15	15	1,2	1	14	450
RL-15Fx600	15	15	1,2	1	14	600
RL-16Fx150P	16	15,5	1,2	1	14	150
RL-16Fx300P	16	15,5	1,2	1	14	300
RL-16Fx450P	16	15,5	1,2	1	14	450
RL-16Fx600P	16	15,5	1,2	1	14	600
RL-16Fx150G	16	16	1,2	1	14	150
RL-16Fx300G	16	16	1,2	1	14	300
RL-16Fx450G	16	16	1,2	1	14	450
RL-16Fx600G	16	16	1,2	1	14	600
RL-19Fx150	19	19	1,2	1	14	150
RL-19Fx300	19	19	1,2	1	14	300
RL-19Fx450	19	19	1,2	1	14	450
RL-19Fx600	19	19	1,2	1	14	600
RL-20Fx150P	20	19,5	1,2	1	14	150
RL-20Fx300P	20	19,5	1,2	1	14	300
RL-20Fx450P	20	19,5	1,2	1	14	450
RL-20Fx600P	20	19,5	1,2	1	14	600
RL-20Fx150G	20	20	1,2	1	14	150
RL-20Fx300G	20	20	1,2	1	14	300
RL-20Fx450G	20	20	1,2	1	14	450
RL-20Fx600G	20	20	1,2	1	14	600
RL-25Fx150P	25	24,5	1,2	1	14	150
RL-25Fx300P	25	24,5	1,2	1	14	300
RL-25Fx450P	25	24,5	1,2	1	14	450
RL-25Fx600P	25	24,5	1,2	1	14	600
RL-25Fx150G	25	25	1,2	1	14	150
RL-25Fx300G	25	25	1,2	1	14	300
RL-25Fx450G	25	25	1,2	1	14	450
RL-25Fx600G	25	25	1,2	1	14	600
RL-30Fx150	30	30	1,2	1	14	150
RL-30Fx300	30	30	1,2	1	14	300
RL-30Fx450	30	30	1,2	1	14	450
RL-30Fx600	30	30	1,2	1	14	600

Are you interested?

Call
+39.030.2120868

Ask for
information

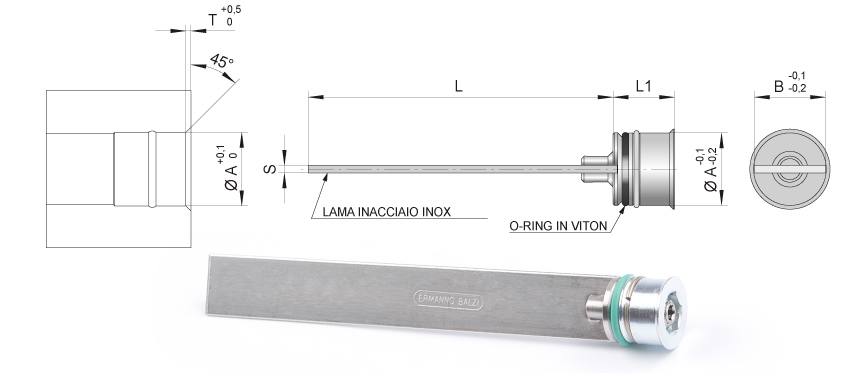

Set "STANDARD"

Straight baffles are based on rapid plug and unplug technology that simplifies and speeds up the machining of seats with regard to assembly and disassembly procedures of mould cooling components.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
We advise using set standard baffles whenever the required tolerance (0/+0.1 mm) of the cooling channel is not met or the surface quality is insufficient to guarantee the O-ring sealing.

COD.	A	T	S	B	L1	L
RL-6x100	6,5	0,7	1	6	7,5	100
RL-6x200	6,5	0,7	1	6	7,5	200
RL-6x300	6,5	0,7	1	6	7,5	300
RL-8x100	8,5	1	1	8	9,5	100
RL-8x200	8,5	1	1	8	9,5	200
RL-8x300	8,5	1	1	8	9,5	300
RL-10x100	10,5	1	1	10	12,5	100
RL-10x200	10,5	1	1	10	12,5	200
RL-10x300	10,5	1	1	10	12,5	300
RL-12x100	12,5	1	1	12	12,5	100
RL-12x200	12,5	1	1	12	12,5	200
RL-12x300	12,5	1	1	12	12,5	300
RL-14x100	14,5	1	1	14	12,5	100
RL-14x200	14,5	1	1	14	12,5	200
RL-14x300	14,5	1	1	14	12,5	300
