Rod for ejection of cooled inserts

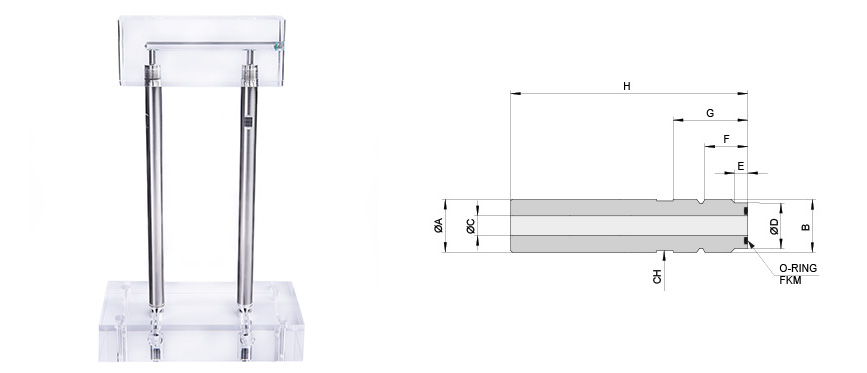

The rod SER allows for the simple and compact realization of the conditioning circuit for the extraction inserts. The fluid passage occurs through the drilled rods and the appropriately shaped fixing screw.
The system is supplied with a kit of FKM seals for high-temperature applications.
> Download STP

COD. | A | B | C | D | E | F | G | CH | ![]() |
---|---|---|---|---|---|---|---|---|---|
S-SER16300 | 16 | M16X1,5 | 6 | 13,8 | 4 | 13 | 50 | 14 | - |
S-SER16500 | 16 | M16X1,5 | 6 | 13,8 | 4 | 13 | 50 | 14 | - |
S-SER20300 | 20 | M20X1,5 | 8 | 17,6 | 4 | 16 | 50 | 18 | - |
S-SER20500 | 20 | M20X1,5 | 8 | 17,6 | 4 | 16 | 50 | 18 | - |
S-SER25300 | 25 | M20X1,5 | 8 | 17,6 | 4 | 16 | 50 | 22 | - |
S-SER25500 | 25 | M20X1,5 | 8 | 17,6 | 4 | 16 | 50 | 22 | - |
