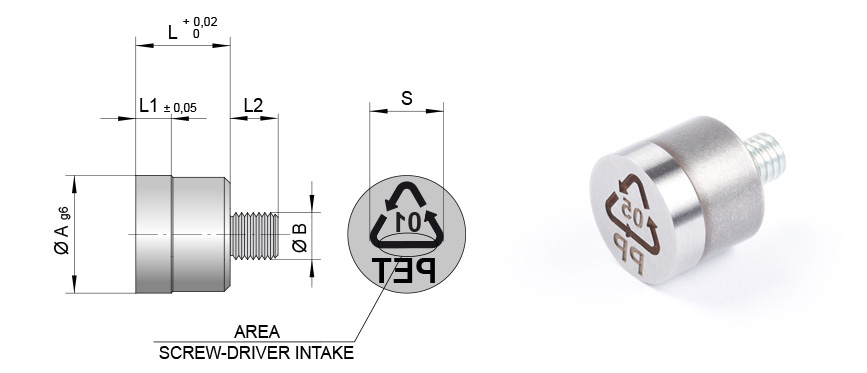

Insert for recycling
Set IRA
The insert for recycling allows for marking the part pointing out the injected plastic material as specified by the standard. The insert is available with both front- and back-fixing technology. The front-fixing can be performed using the engraving on the body as a seat for the screwdriver. The orientation of the engraved geometry against the cavity can be modified by setting the position of the threaded insert.
| COD. | A | B | L | L1 | L2 | S |  |
|---|---|---|---|---|---|---|---|
| IRA-10 | 10 | M6 | 12 | 4 | 7 | 6 |  |
| IRA-12 | 12 | M6 | 14 | 4 | 7 | 8 | |
| IRA-16 | 16 | M6 | 14 | 4 | 7 | 10 | |
| IRA-20 | 20 | M6 | 16 | 4 | 7 | 12 | |
Set standard IR
| COD. | A | B | L | L1 | S | |
|---|---|---|---|---|---|---|
| IR-5 | 5 | M3 | 10 | 4 | 3 | |
| IR-6 | 6 | M4 | 10 | 4 | 4 | |
| IR-8 | 8 | M4 | 10 | 4 | 5 | |
| IR-10 | 10 | M5 | 12 | 4 | 6 | |
| IR-12 | 12 | M6 | 14 | 4 | 8 | |
| IR-16 | 16 | M6 | 14 | 4 | 10 | |
| IR-20 | 20 | M6 | 16 | 4 | 12 | |
