Marking Unit

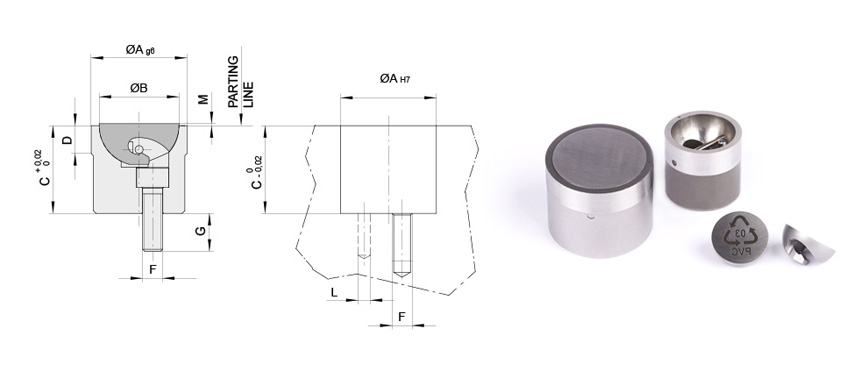

The Marking unit allows for a quick front assembly and disassembly of a moulding insert. The system is made up by a body, which is fixed in the mould with a screw, and a hemispherical insert that can be easily placed into the body and tilted to the hooking position. The insert release is easily carried out applying a force close to the reference point. The magnet on the removal tool allows an easy extraction of the insert. The insert is available without markings, with standard recycling symbols or with special engravings.
| COD. | A | B | C | D | F | G | L | M |  |
|---|---|---|---|---|---|---|---|---|---|
| UM-14 | 14 | 12 | 14 | 5 | M4 | 6,5 | 2 | 0,15 |  |
| UM-18 | 18 | 16 | 18 | 6 | M5 | 7,5 | 2 | 0,15 | |
| UM-24 | 24 | 20 | 22 | 7,5 | M5 | 7,5 | 3 | 0,15 | |
| UM-30 | 30 | 26 | 25 | 7 | M5 | 7,5 | 3 | 0,15 | |
