AnglePro Configurator
STEP 1
AnglePro Configurator

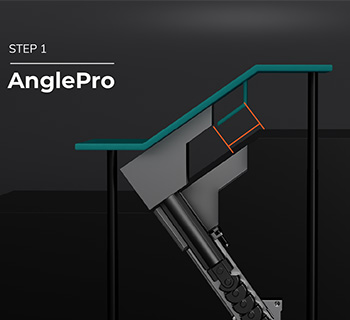

Enter the "R" dimension of the undercut to be removed, including the required gap.
STEP 2

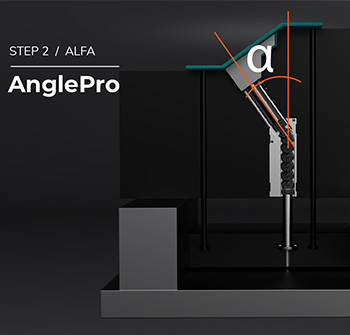

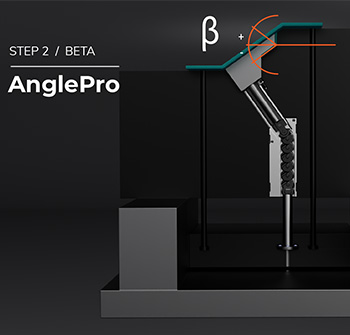

Enter the rod angle α and the advance or delay angle β.
Note: if β is positive, α + β ≤ 35°.

AnglePro Configurator
Rod angle α:
AnglePro Configurator
Advance or delay angle β:
STEP 3
AnglePro Configurator

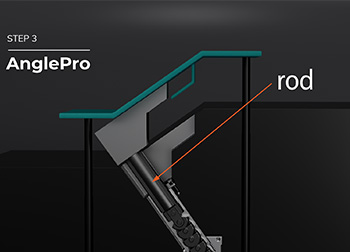

Enter the rod diameter.
