Gas injector
The moving pin with conical closure guarantees a high gas flow rate and a self-cleaning action that dramatically reduce maintenance.
The Gas Injector works effectively at a pressure range of between 1 and 160 bar; degassing is guaranteed thanks to the precise vents on the conical closure.
The self-sealing geometry allows the application to work without O-rings or Teflon.

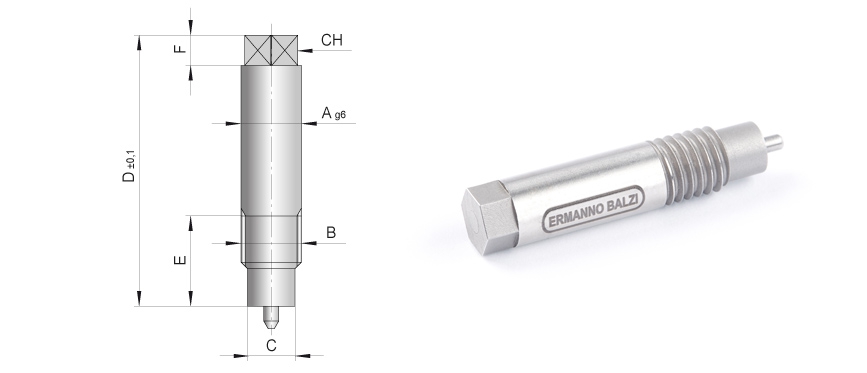

| COD. | A | B | C | D | E | F | CH | H |  |
|---|---|---|---|---|---|---|---|---|---|
| IGB-4 | 4 | M4 | 3,3 | 28 | 10 | 3 | 3,5 | 2 |  |
| IGB-6 | 6 | M6 | 4,6 | 33 | 12 | 3 | 5 | 3 | |
| IGB-8 | 8 | M8 | 6,3 | 36 | 12 | 4 | 7 | 4 | |
| IGB-8L | 8 | M8 | 6,3 | 60 | 12 | 4 | 7 | 4 | |
