Rod forward locking
The side-action CA locking cylinder is designed to withstand plastic injection force during the injection phase. Its compact design enables the whole part to be embedded into the cavity, reducing necessary mold dimensions while. The rod orientated against rotation allows for easy application in case of shaped cores. The cylinder can work with air without downsize of locking action.

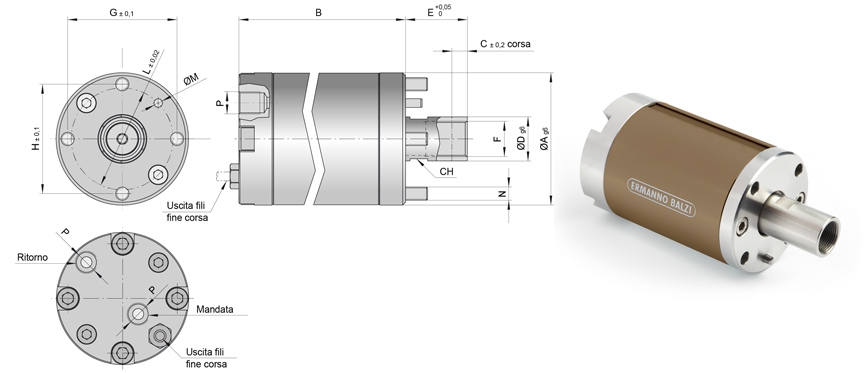

| COD. | A | B | C | D | E | F | G | H |  |
|---|---|---|---|---|---|---|---|---|---|
| CA6007 | 60 | 97 | 7 | 20 | 28 | M16x1 | 49,6 | 49,6 |  |
