Plate sequence control DT-DS

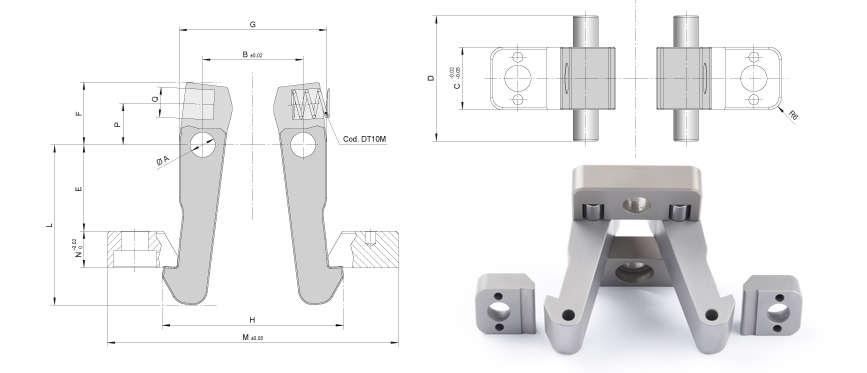

Set "DT"

The plate locks devices DT were designed to guarantee high load capacity and to be applied into medium and large size tools. Internal application guarantees easy installation with only minimal machining on plates already requiring modification. The devices are suitable for both double ejection and 3-plate sequencing. In both cases the strokes can be set by adjusting the rod length and setting the fulcrum pin position.

Plate sequel control - Set DT
COD.CADENAS
DT10K1CADENAS
DT10K2CADENAS
DT10K3CADENAS
ARE YOU INTERESTED?
call +39.030.2120868
or > ask for information

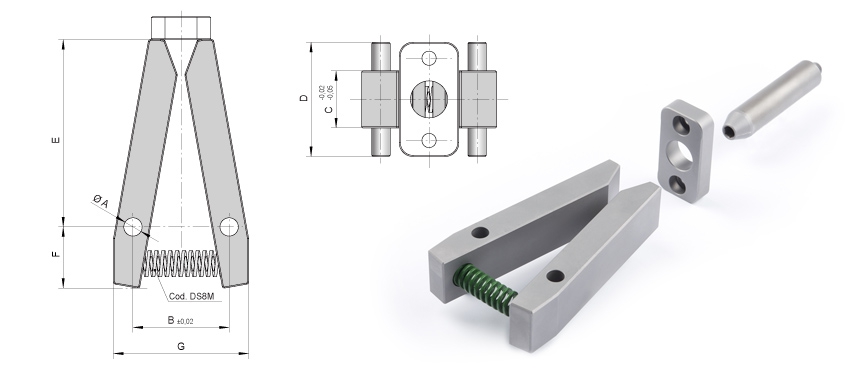

Set "DS"

The plate locks devices DS were designed to guarantee high load capacity and to be applied into medium and large size tools. Internal application guarantees easy installation with only minimal machining on plates already requiring modification. The devices are suitable for double ejection sequencing where the ejector plates move keeping reciprocal distance for the first stroke and the second stroke is performed by the lower plate. The first stroke can be set by adjusting the rod length.

Plate sequel control - Set DS
COD.CADENAS
DS8K1CADENAS
DS8K2CADENAS
