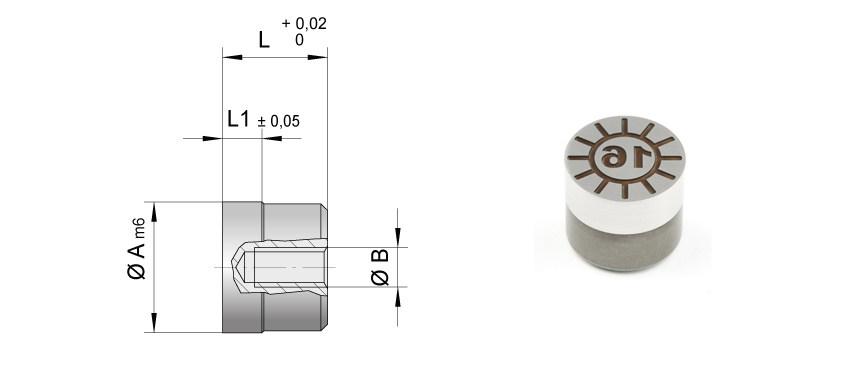

Die casting date stamp
The die casting date stamp is characterized by the back fixing system and by the simple grid where the production month can be marked. The robust design allows for application in die casting processes.
| COD. | A | B | L | L1 |  |
|---|---|---|---|---|---|
| DAP-5A | 5 | M3 | 10 | 4 |  |
| DAP-6A | 6 | M4 | 10 | 4 | |
| DAP-8A | 8 | M4 | 10 | 4 | |
| DAP-10A | 10 | M5 | 12 | 5 | |
| DAP-12A | 12 | M6 | 14 | 5 | |
| DAP-16A | 16 | M6 | 14 | 6 | |
| DAP-20A | 20 | M6 | 16 | 6 | |
| DAP-5N | 5 | M3 | 10 | 4 | |
| DAP-6N | 6 | M4 | 10 | 4 | |
| DAP-8N | 8 | M4 | 10 | 4 | |
| DAP-10N | 10 | M5 | 12 | 5 | |
| DAP-12N | 12 | M6 | 14 | 5 | |
| DAP-16N | 16 | M6 | 14 | 6 | |
| DAP-20N | 20 | M6 | 16 | 6 | |
