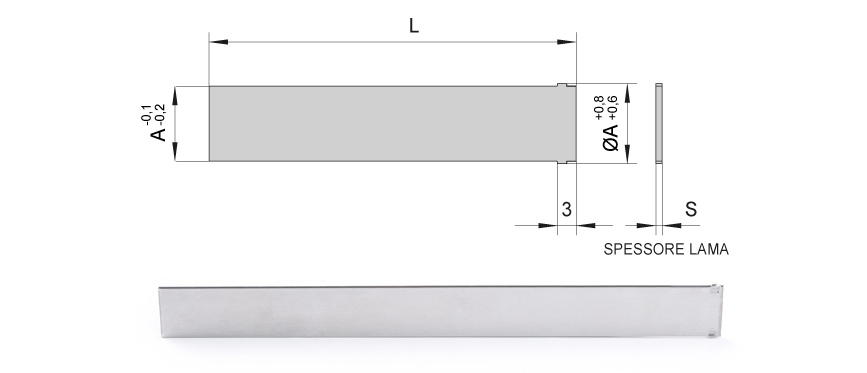

Self-locking baffles without spring allow for easy and effective placement of a partition blade in a cooling channel. A special broaching tool smoothes the way for the creation of a seat into which the blade can be placed safely against rotation and along the axis of the hole.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
| COD. | A | S | L |  |
|---|---|---|---|---|
| RLA-6SMx14 | 6 | 1 | 14 |  |
| RLA-6SMx100 | 6 | 1 | 100 | |
| RLA-6SMx200 | 6 | 1 | 200 | |
| RLA-8SMx16 | 8 | 1 | 16 | |
| RLA-8SMx100 | 8 | 1 | 100 | |
| RLA-8SMx200 | 8 | 1 | 200 | |
| RLA-10SMx18 | 10 | 1 | 18 | |
| RLA-10SMx100 | 10 | 1 | 100 | |
| RLA-10SMx200 | 10 | 1 | 200 | |
| RLA-12SMx20 | 12 | 1 | 20 | |
| RLA-12SMx100 | 12 | 1 | 100 | |
| RLA-12SMx200 | 12 | 1 | 200 | |
| RLA-14SMx22 | 14 | 1 | 22 | |
| RLA-14SMx100 | 14 | 1 | 100 | |
| RLA-14SMx200 | 14 | 1 | 200 | |
| RLA-16SMx24 | 16 | 1 | 24 | |
| RLA-16SMx150 | 16 | 1 | 150 | |
| RLA-16SMx300 | 16 | 1 | 300 | |
| RLA-20SMx26 | 20 | 1 | 26 | |
| RLA-20SMx150 | 20 | 1 | 150 | |
| RLA-20SMx300 | 20 | 1 | 300 | |
| RLA-25SMx28 | 25 | 1 | 28 | |
| RLA-25SMx150 | 25 | 1 | 150 | |
| RLA-25SMx300 | 25 | 1 | 300 | |
Spiral self-locking baffles without spring allow for easy and effective placement of a partition blade in a cooling channel. A special broaching tool smoothes the way for the creation of a seat into which the blade can be placed safely against rotation and along the axis of the hole. The spiral pattern ensures a uniform temperature throughout the entire surface and it also fosters a turbulent flow that allows for greater heat release.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
| COD. | A | S | L | L2 | |
|---|---|---|---|---|---|
| RLAS-6SMx100 | 6 | 1 | 100 | 22 | |
| RLAS-6SMx200 | 6 | 1 | 200 | 45 | |
| RLAS-8SMx100 | 8 | 1 | 100 | 20 | |
| RLAS-8SMx200 | 8 | 1 | 200 | 45 | |
| RLAS-10SMx100 | 10 | 1 | 100 | 25 | |
| RLAS-10SMx200 | 10 | 1 | 200 | 45 | |
| RLAS-12SMx100 | 12 | 1 | 100 | 25 | |
| RLAS-12SMx200 | 12 | 1 | 200 | 40 | |
| RLAS-14SMx100 | 14 | 1 | 100 | 24 | |
| RLAS-14SMx200 | 14 | 1 | 200 | 42 | |
| RLAS-16SMx150 | 16 | 1 | 150 | 35 | |
| RLAS-16SMx300 | 16 | 1 | 300 | 50 | |
| RLAS-20SMx150 | 20 | 1,5 | 150 | 40 | |
| RLAS-20SMx300 | 20 | 1,5 | 300 | 55 | |
| RLAS-25SMx150 | 25 | 1,5 | 150 | 40 | |
| RLAS-25SMx300 | 25 | 1,5 | 300 | 55 | |
