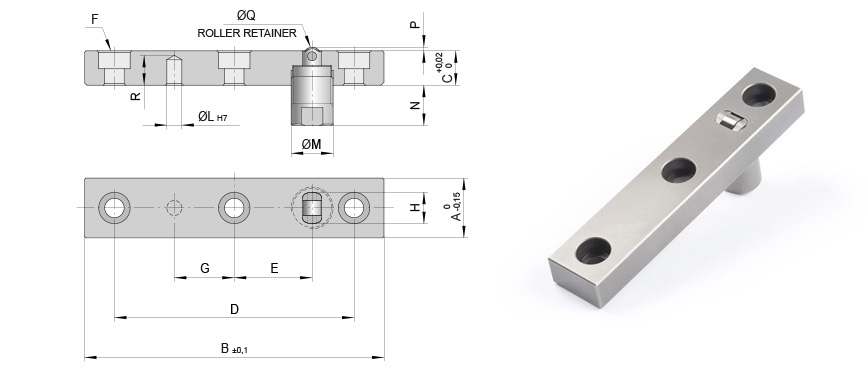

Sliding plates with integrated retainer
The sliding plates with integrated retainer fully meet two compelling requirements in the development of a slider such as the precision machining of the sliding surface whose hardness and finish minimize any risk of seizure and a safe and small integrated retaining system. The integrated retainer includes a roller locking device aimed at minimizing wear, whilst ensuring a reliable locking action at the same time.
| COD. | A | B | C | D | E | F | G | K |  |
|---|---|---|---|---|---|---|---|---|---|
| PRI2060 | 20 | 60 | 11,5 | 44 | 8 | M6 | 9 | 10Kg |  |
| PRI2080 | 20 | 80 | 11,5 | 60 | 16 | M6 | 9 | 10Kg | |
| PRI20100 | 20 | 100 | 11,5 | 80 | 26 | M6 | 20 | 10Kg | |
| PRI20120 | 20 | 120 | 11,5 | 100 | 36 | M6 | 25 | 10Kg | |
| PRI30100 | 30 | 100 | 14,5 | 76 | 20 | M8 | 10 | 20Kg | |
| PRI30120 | 30 | 120 | 14,5 | 92 | 28 | M8 | 10 | 20Kg | |
| PRI30140 | 30 | 140 | 14,5 | 112 | 38 | M8 | 28 | 20Kg | |
| PRI30160 | 30 | 160 | 14,5 | 132 | 48 | M8 | 33 | 20Kg | |
| PRI40120 | 40 | 120 | 19,5 | 88 | 22 | M10 | 14 | 50Kg | |
| PRI40140 | 40 | 140 | 19,5 | 104 | 30 | M10 | 14 | 50Kg | |
| PRI40160 | 40 | 160 | 19,5 | 124 | 40 | M10 | 31 | 50Kg | |
| PRI40180 | 40 | 180 | 19,5 | 144 | 50 | M10 | 36 | 50Kg | |
