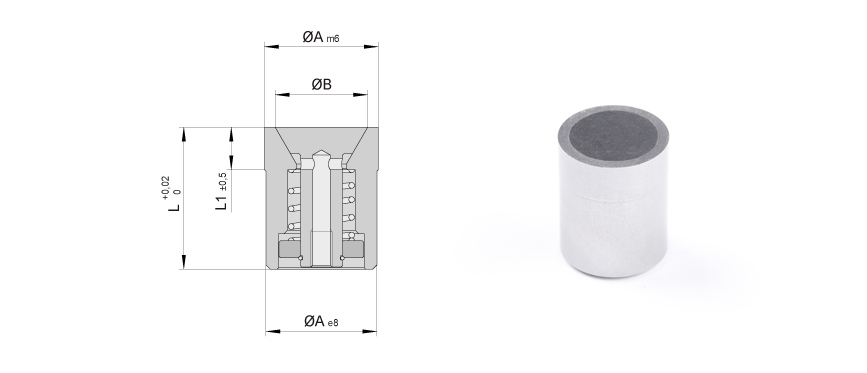

Conical valve
Due to high quality of materials and machining the VA conical air valve is a reliable product suitable for high production tools. The conical valve is available in a broad dimensional range down to a minimum size of four millimeters.
| COD. | A | B | L | L1 | C | D | E |  |
|---|---|---|---|---|---|---|---|---|
| VA-4 | 4 | 3,4 | 8 | 4 | 3,5 | 2,8 | 3 |  |
| VA-6 | 6 | 5 | 10 | 4 | 5 | 4 | 4,5 | |
| VA-6L | 6 | 5 | 12 | 4 | 5 | 4 | 4,5 | |
| VA-8 | 8 | 5,6 | 12 | 4 | 6,5 | 5 | 6 | |
| VA-10 | 10 | 8 | 14 | 5 | 7,5 | 5 | 7 | |
| VA-10C | 10 | 8 | 12 | 5 | 7,5 | 5 | 7 | |
| VA-12 | 12 | 10 | 14 | 5 | 9 | 5,5 | 8,5 | |
| VA-12C | 12 | 10 | 12 | 5 | 9 | 5,5 | 8,5 | |
| VA-16 | 16 | 12 | 20 | 6 | 12 | 6,5 | 11 | |
| VA-20 | 20 | 16 | 20 | 6 | 12 | 6,5 | 11 | |
