Insert extractor

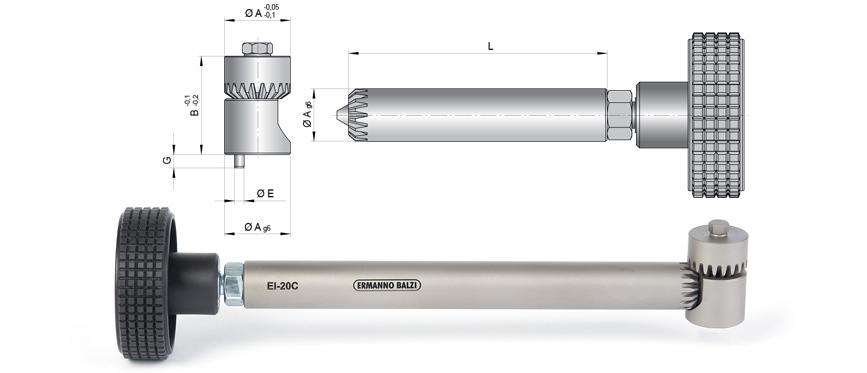

The insert removal EI is a mechanical device designed to enable easy assembly and disassembly of mold inserts even when clamped inside the injection machine. A bevel gear actuates a screw that tights and releases the insert. The bulky design allows good tightening torque and longevity of the mechanism.
> Download STP
| COD. | CH | A | B | C | D | E | F | L |  |
|---|---|---|---|---|---|---|---|---|---|
| EI-203K | 3 | 20 | 30 | 12 | 16,2 | 3 | 5,5 | 41,5 | - |
| EI-204K | 4 | 20 | 30 | 12 | 16,2 | 3 | 5,5 | 41,5 | - |
| EI-205K | 5 | 20 | 30 | 12 | 16,2 | 3 | 5,5 | 41,5 | - |
| EI-206K | 6 | 20 | 30 | 12 | 16,2 | 3 | 5,5 | 41,5 | - |
| EI-208K | 8 | 20 | 30 | 12 | 16,2 | 3 | 5,5 | 41,5 | - |
