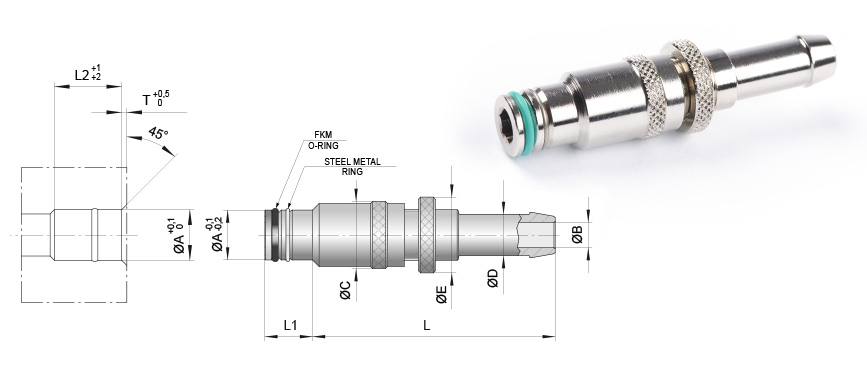

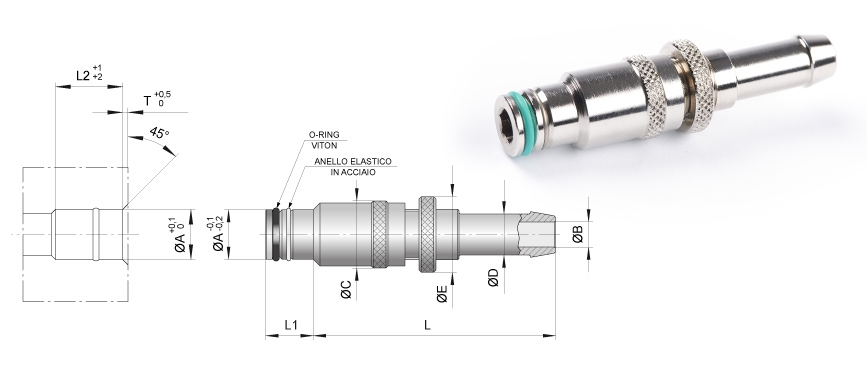

Rapid connector
The rapid connector Ermanno Balzi is based on rapid plug and unplug technology that allows to fit directly into the cooling channel without requiring a socket inside the mold. The main benefits of the technology are the considerable simplification of the machining and the cost savings thanks to the socket elimination.
| COD. | A | B | C | D | E | L | L1 | L2 |  |
|---|---|---|---|---|---|---|---|---|---|
| AR12 | 12 | 6 | 16 | 10 | 18 | 57 | 12 | 14 |  |
| AR12-1/8 | 12 | - | - | - | - | 37 | - | - | |
| AR12-90 | 12 | - | - | - | - | 47 | - | - | |
| AR12-45 | 12 | - | - | - | - | 40 | - | - | |
| AR16 | 16 | 9 | 19 | 13 | 22 | 60 | 12,5 | 15 | |
| AR16-1/4 | 16 | - | - | - | - | 40 | - | - | |
| AR16-90 | 16 | - | - | - | - | 55 | - | - | |
| AR16-45 | 16 | - | - | - | - | 46 | - | - | |
| AR20 | 20 | 13 | 24 | 20 | 28 | 68 | 13,5 | 16,5 | |
| AR20-1/2 | 20 | - | - | - | - | 50 | - | - | |
| AR20-90 | 20 | - | - | - | - | 61 | - | - | |
| AR20-45 | 20 | - | - | - | - | 56 | - | - | |
