In-series bubbles

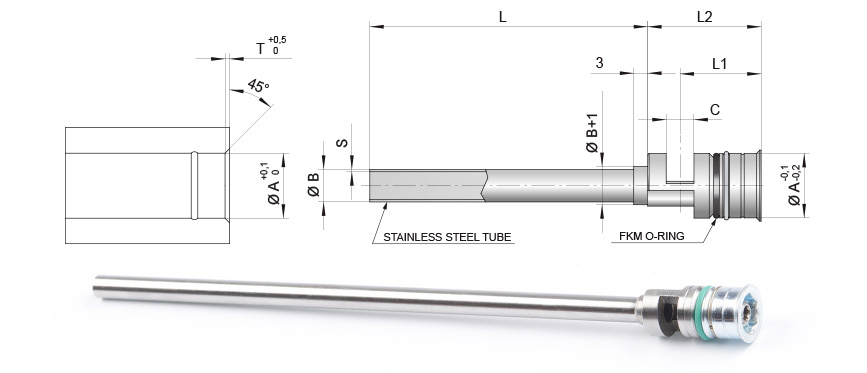

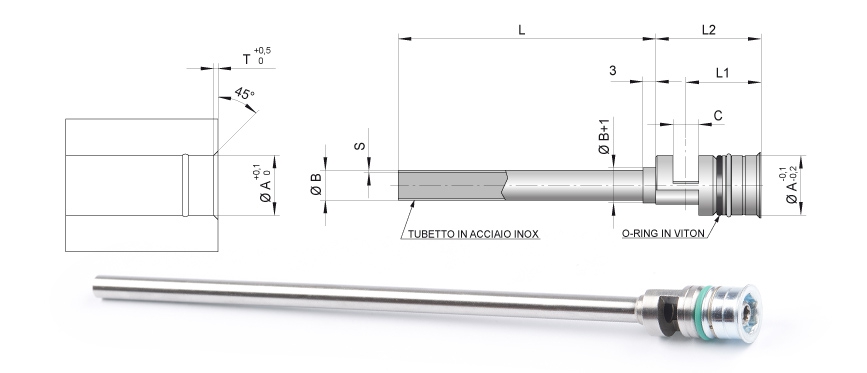

Set "F"

In-series bubbles are based on rapid plug and unplug technology that simplifies and speeds up the machining of seats with regard to assembly and disassembly procedures of mold cooling components. The design of the bubble allows there to be only one hole both for inlet and outlet of the heat transfer medium. Thanks to the broad dimensional range you will find the standard solution that fits your application.
We advise using set F bubbles whenever the required tolerance (0/+0.1 mm) of the cooling channel is met and the surface quality is sufficient to guarantee the O-ring sealing.

COD.	A	T	B	S	C	L1	L2	L
RF-6Fx150/2	6	0,7	2	0,25	4	12,5	17,5	150
RF-6Fx150/3	6	0,7	3	0,25	4	12,5	17,5	150
RF-6Fx300/2	6	0,7	2	0,25	4	12,5	17,5	300
RF-6Fx300/3	6	0,7	3	0,25	4	12,5	17,5	300
RF-6Fx450/2	6	0,7	2	0,25	4	12,5	17,5	450
RF-6Fx450/3	6	0,7	3	0,25	4	12,5	17,5	450
RF-6Fx600/2	6	0,7	2	0,25	4	12,5	17,5	600
RF-6Fx600/3	6	0,7	3	0,25	4	12,5	17,5	600
RF-8Fx150/2	8	1	2	0,25	4	13,5	18	150
RF-8Fx150/3	8	1	3	0,25	4	13,5	18	150
RF-8Fx150/4	8	1	4	0,25	4	13,5	18	150
RF-8Fx300/2	8	1	2	0,25	4	13,5	18	300
RF-8Fx300/3	8	1	3	0,25	4	13,5	18	300
RF-8Fx300/4	8	1	4	0,25	4	13,5	18	300
RF-8Fx450/2	8	1	2	0,25	4	13,5	18	450
RF-8Fx450/3	8	1	3	0,25	4	13,5	18	450
RF-8Fx450/4	8	1	4	0,25	4	13,5	18	450
RF-8Fx600/2	8	1	2	0,25	4	13,5	18	600
RF-8Fx600/3	8	1	3	0,25	4	13,5	18	600
RF-8Fx600/4	8	1	4	0,25	4	13,5	18	600
RF-10Fx150/2,5	10	1	2,5	0,25	5	16	22,5	150
RF-10Fx150/3	10	1	3	0,25	5	16	22,5	150
RF-10Fx150/4	10	1	4	0,25	5	16	22,5	150
RF-10Fx150/5	10	1	5	0,25	5	16	22,5	150
RF-10Fx300/2,5	10	1	2,5	0,25	5	16	22,5	300
RF-10Fx300/3	10	1	3	0,25	5	16	22,5	300
RF-10Fx300/4	10	1	4	0,25	5	16	22,5	300
RF-10Fx300/5	10	1	5	0,25	5	16	22,5	300
RF-10Fx450/2,5	10	1	2,5	0,25	5	16	22,5	450
RF-10Fx450/3	10	1	3	0,25	5	16	22,5	450
RF-10Fx450/4	10	1	4	0,25	5	16	22,5	450
RF-10Fx450/5	10	1	5	0,25	5	16	22,5	450
RF-10Fx600/2,5	10	1	2,5	0,25	5	16	22,5	600
RF-10Fx600/3	10	1	3	0,25	5	16	22,5	600
RF-10Fx600/4	10	1	4	0,25	5	16	22,5	600
RF-10Fx600/5	10	1	5	0,25	5	16	22,5	600
RF-12Fx150	12	1	6	0,5	5	17	24	150
RF-12Fx300	12	1	6	0,5	5	17	24	300
RF-12Fx450	12	1	6	0,5	5	17	24	450
RF-12Fx600	12	1	6	0,5	5	17	24	600
RF-14Fx150	14	1	7	0,5	6	17,5	24,5	150
RF-14Fx300	14	1	7	0,5	6	17,5	24,5	300
RF-14Fx450	14	1	7	0,5	6	17,5	24,5	450
RF-14Fx600	14	1	7	0,5	6	17,5	24,5	600
RF-16Fx150	16	1,2	8	0,5	8	19	27,5	150
RF-16Fx300	16	1,2	8	0,5	8	19	27,5	300
RF-16Fx450	16	1,2	8	0,5	8	19	27,5	450
RF-16Fx600	16	1,2	8	0,5	8	19	27,5	600
RF-20Fx150	20	1,2	12	1	10	20	29,5	150
RF-20Fx300	20	1,2	12	1	10	20	29,5	300
RF-20Fx450	20	1,2	12	1	10	20	29,5	450
RF-20Fx600	20	1,2	12	1	10	20	29,5	600
RF-25Fx150	25	1,2	15	1	12	22,5	33,5	150
RF-25Fx300	25	1,2	15	1	12	22,5	33,5	300
RF-25Fx450	25	1,2	15	1	12	22,5	33,5	450
RF-25Fx600	25	1,2	15	1	12	22,5	33,5	600

Are you interested?

Call
+39.030.2120868

Ask for
information

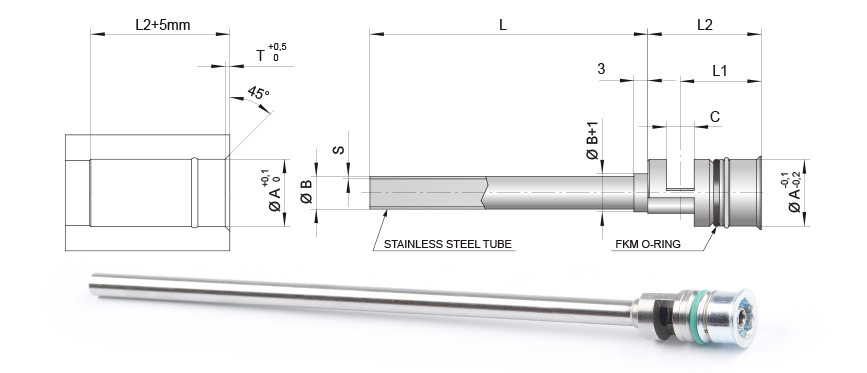

Set "STANDARD"

In-series bubbles are based on rapid plug and unplug technology that simplifies and speeds up the machining of seats with regard to assembly and disassembly procedures of mold cooling components. The design of the bubble allows there to be only one hole both for inlet and outlet of the heat transfer medium. Thanks to the broad dimensional range you will find the standard solution that fits your application.
We advise using set standard bubbles whenever the required tolerance (0/+0.1 mm) of the cooling channel is not met or the surface quality is insufficient to guarantee the O-ring sealing.

COD.	A	T	B	S	C	L1	L2	L
RF-8x150/2	8,5	1	2	0,25	4	13,5	18	150
RF-8x150/3	8,5	1	3	0,25	4	13,5	18	150
RF-8x150/4	8,5	1	4	0,25	4	13,5	18	150
RF-8x300/2	8,5	1	2	0,25	4	13,5	18	300
RF-8x300/3	8,5	1	3	0,25	4	13,5	18	300
RF-8x300/4	8,5	1	4	0,25	4	13,5	18	300
RF-8x450/2	8,5	1	2	0,25	4	13,5	18	450
RF-8x450/3	8,5	1	3	0,25	4	13,5	18	450
RF-8x450/4	8,5	1	4	0,25	4	13,5	18	450
RF-8x600/2	8,5	1	2	0,25	4	13,5	18	600
RF-8x600/3	8,5	1	3	0,25	4	13,5	18	600
RF-8x600/4	8,5	1	4	0,25	4	13,5	18	600
RF-10x150/2,5	10,5	1	2,5	0,25	5	16	22,5	150
RF-10x150/3	10,5	1	3	0,25	5	16	22,5	150
RF-10x150/4	10,5	1	4	0,25	5	16	22,5	150
RF-10x150/5	10,5	1	5	0,25	5	16	22,5	150
RF-10x300/2,5	10,5	1	2,5	0,25	5	16	22,5	300
RF-10x300/3	10,5	1	3	0,25	5	16	22,5	300
RF-10x300/4	10,5	1	4	0,25	5	16	22,5	300
RF-10x300/5	10,5	1	5	0,25	5	16	22,5	300
RF-10x450/2,5	10,5	1	2,5	0,25	5	16	22,5	450
RF-10x450/3	10,5	1	3	0,25	5	16	22,5	450
RF-10x450/4	10,5	1	4	0,25	5	16	22,5	450
RF-10x450/5	10,5	1	5	0,25	5	16	22,5	450
RF-10x600/2,5	10,5	1	2,5	0,25	5	16	22,5	600
RF-10x600/3	10,5	1	3	0,25	5	16	22,5	600
RF-10x600/4	10,5	1	4	0,25	5	16	22,5	600
RF-10x600/5	10,5	1	5	0,25	5	16	22,5	600
RF-12x150	12,5	1	6	0,5	5	17	24	150
RF-12x300	12,5	1	6	0,5	5	17	24	300
RF-12x450	12,5	1	6	0,5	5	17	24	450
RF-12x600	12,5	1	6	0,5	5	17	24	600
RF-14x150	14,5	1	7	0,5	6	17,5	24,5	150
RF-14x300	14,5	1	7	0,5	6	17,5	24,5	300
RF-14x450	14,5	1	7	0,5	6	17,5	24,5	450
RF-14x600	14,5	1	7	0,5	6	17,5	24,5	600
