MechIndex

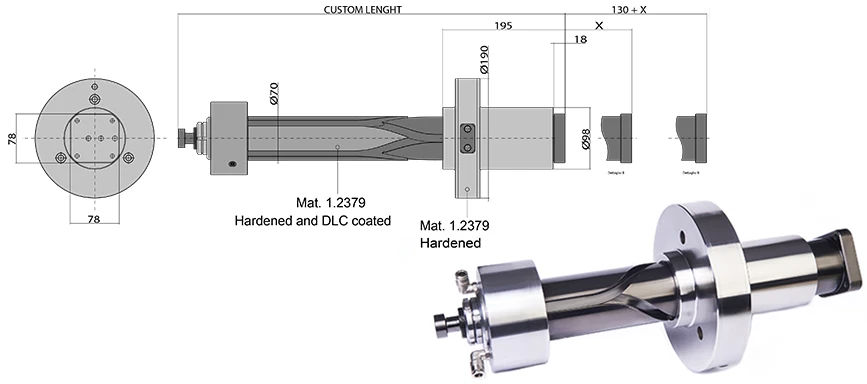

The MechIndex system is a mechanical device designed to perform rotary movements of plates within plastic injection moulds. It is suitable for use both in multi-material moulds and in moulds where it is advantageous to have multiple stations for insert placement or part extraction.
Thanks to the integrated helical guides, the mechanism converts the linear motion of the press ejector into a rotary movement of the plate by 90°, 120° or 180°, depending on the selected configuration.
The dimensions of the MechIndex can be customized according to the required linear stroke X—needed for the plate to exit its housing—and the specifications of the press. On request, the system can be supplied with an integrated plate cooling unit.
Thanks to the integrated helical guides, the mechanism converts the linear motion of the press ejector into a rotary movement of the plate by 90°, 120° or 180°, depending on the selected configuration.
The dimensions of the MechIndex can be customized according to the required linear stroke X—needed for the plate to exit its housing—and the specifications of the press. On request, the system can be supplied with an integrated plate cooling unit.
