Connector bridge
The connector bridge is based on rapid plug and unplug technology that allows to fit directly into the cooling channel without requiring a socket inside the mold. The main benefits of the technology are the considerable simplification of the machining, application, and disassembly for maintenance.

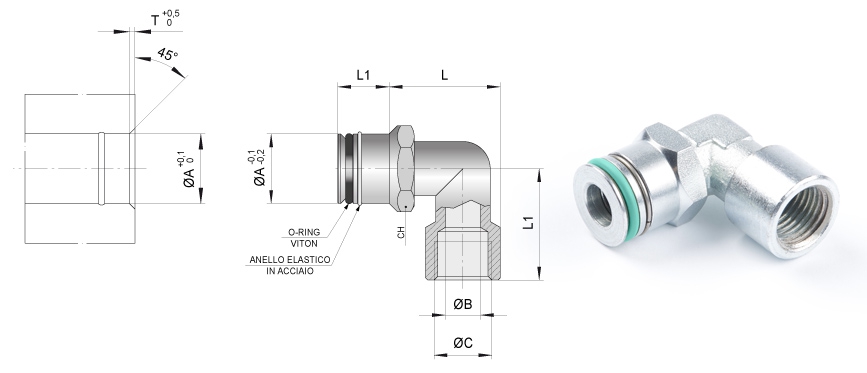

| COD. | A | B | C | T | L | L1 | L2 | CH |  |
|---|---|---|---|---|---|---|---|---|---|
| PT12 | 12 | 5,5 | 1/8" | 1 | 20 | 11,5 | 20 | 13 |  |
| PT16 | 16 | 8 | 1/4" | 1,2 | 25 | 12 | 25,5 | 17 | |
| PT20 | 20 | 10 | 3/8" | 1,2 | 30 | 12 | 31 | 21 | |
| PT25 | 25 | 14 | 1/2" | 1,2 | 36 | 12 | 35 | 26 | |
