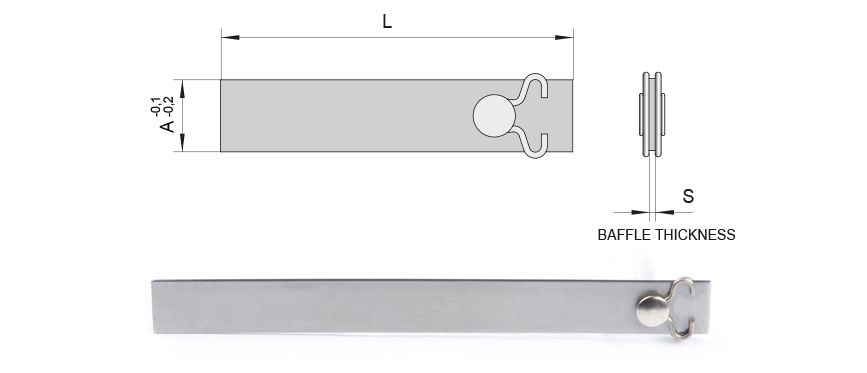

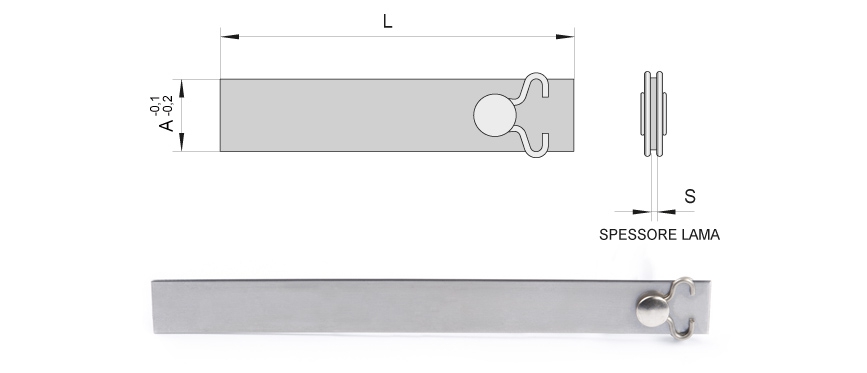

The self-locking baffles with spring allow to easily and effectively place a partition blade in a cooling channel. Locking the blade properly against rotation and along the axis of the hole is allowed by the spring pressure exerted against the surface of the hole.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
| COD. | A | S | L |  |
|---|---|---|---|---|
| RLA-10x18 | 10 | 1 | 18 |  |
| RLA-10x100 | 10 | 1 | 100 | |
| RLA-10x200 | 10 | 1 | 200 | |
| RLA-12x20 | 12 | 1 | 20 | |
| RLA-12x100 | 12 | 1 | 100 | |
| RLA-12x200 | 12 | 1 | 200 | |
| RLA-14x22 | 14 | 1 | 22 | |
| RLA-14x100 | 14 | 1 | 100 | |
| RLA-14x200 | 14 | 1 | 200 | |
| RLA-16x24 | 16 | 1 | 24 | |
| RLA-16x150 | 16 | 1 | 150 | |
| RLA-16x300 | 16 | 1 | 300 | |
| RLA-20x26 | 20 | 1 | 26 | |
| RLA-20x150 | 20 | 1 | 150 | |
| RLA-20x300 | 20 | 1 | 300 | |
| RLA-25x28 | 25 | 1 | 28 | |
| RLA-25x150 | 25 | 1 | 150 | |
| RLA-25x300 | 25 | 1 | 300 | |

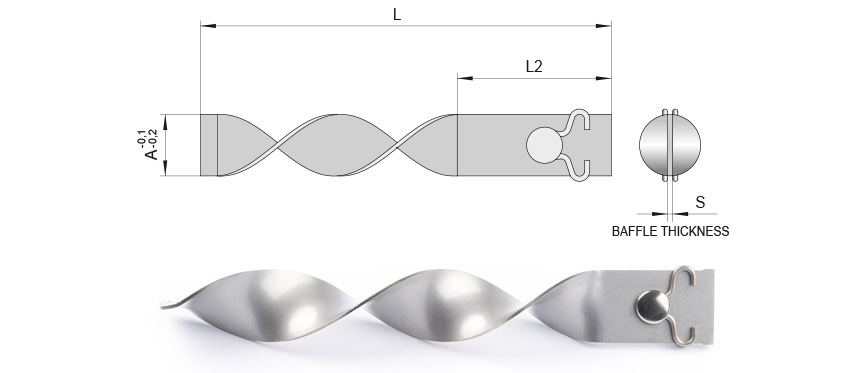

Self-locking baffles with spring allow for easy and effective placement of a partition blade in a cooling channel. Locking the blade properly against rotation and along the axis of the hole is allowed by the spring pressure exerted against the surface of the hole surface.
The spiral pattern ensures a uniform temperature throughout the entire surface and it also fosters a turbulent flow that allows for greater heat release.
Thanks to the broad dimensional range you will find the standard solution that fits your application.
| COD. | A | S | L | L2 | |
|---|---|---|---|---|---|
| RLAS-10x100 | 10 | 1 | 100 | 25 | |
| RLAS-10x200 | 10 | 1 | 200 | 25 | |
| RLAS-12x100 | 12 | 1 | 100 | 25 | |
| RLAS-12x200 | 12 | 1 | 200 | 25 | |
| RLAS-14x100 | 14 | 1 | 100 | 24 | |
| RLAS-14x200 | 14 | 1 | 200 | 24 | |
| RLAS-16x150 | 16 | 1 | 150 | 35 | |
| RLAS-16x300 | 16 | 1 | 300 | 35 | |
| RLAS-20x150 | 20 | 1,5 | 150 | 40 | |
| RLAS-20x300 | 20 | 1,5 | 300 | 40 | |
| RLAS-25x150 | 25 | 1,5 | 150 | 40 | |
| RLAS-25x300 | 25 | 1,5 | 300 | 40 | |
