Double date stamp
Double date stamp

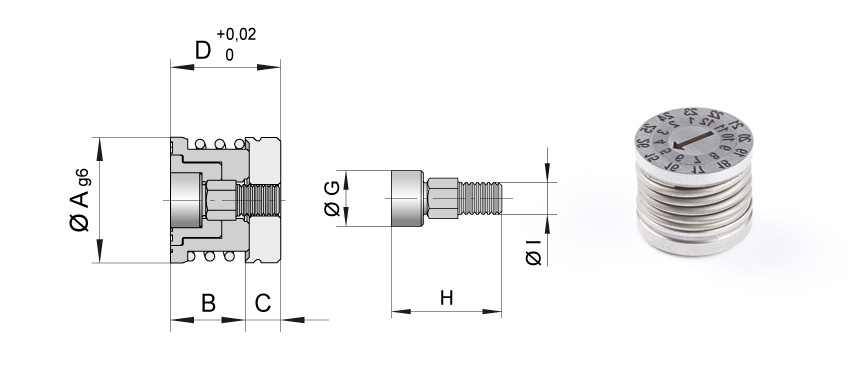

The double date stamp is composed by an insert and two rings and is able to cover a large time span, as it includes marks for 12 months and 6 or 12 years. As a standard date stamp, this device can be easily removed from the front of the mold; additionally, precision machining ensures flatness between the insert and the rings, as well as accurate positioning of the insert.
The double date stamp ensures simplification of operations, space saving and competitive price.
| COD. | A | B | C | D |  |
|---|---|---|---|---|---|
| DAU-8 | 8 | 8 | 4 | 12 |  |
| DAU-10 | 10 | 10 | 4 | 14 | |
| DAU-12 | 12 | 10 | 4 | 14 | |
| DAU-16 | 16 | 10 | 4 | 14 | |
| DAU-8D | 8 | 8 | 4 | 12 | |
| DAU-10D | 10 | 10 | 4 | 14 | |
| DAU-12D | 12 | 10 | 4 | 14 | |
| DAU-16D | 16 | 10 | 4 | 14 | |
Indicator insert
| COD. | G | H | I | |
|---|---|---|---|---|
| IDAU-F8 | 3,8 | 12 | M2,5 | |
| IDAU-F10 | 4,8 | 14 | M3 | |
| IDAU-F12 | 5,8 | 14 | M4 | |
| IDAU-F16 | 7 | 14 | M4 | |
