Injection mold daters
Injection mold daters

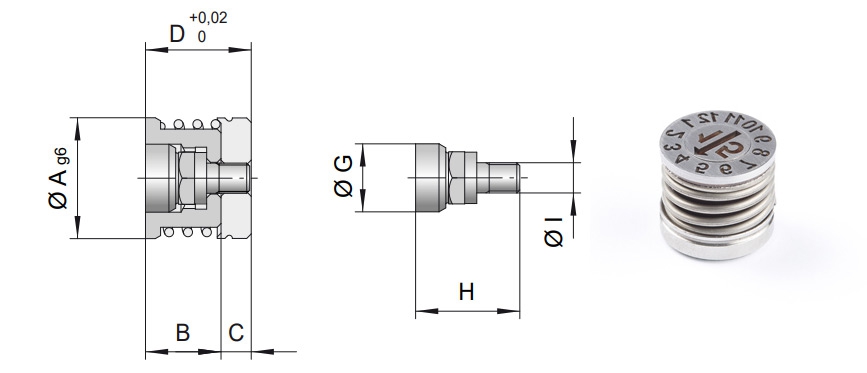

Injection mold daters is characterized by the fixing system and the mechanical positioning of the insert against the body. The main benefits of the system are its easy removal from the front of the mold, the accurate positioning of the insert against rotation, and the ensured flatness between insert and body.
| COD. | A | B | C | D |  |
|---|---|---|---|---|---|
| DA-AF6 | 6 | 7 | 3 | 10 |  |
| DA-AF8 | 8 | 8 | 4 | 12 | |
| DA-AF10 | 10 | 10 | 4 | 14 | |
| DA-AF12 | 12 | 10 | 4 | 14 | |
| DA-AF16 | 16 | 10 | 4 | 14 | |
| DA-MF6 | 6 | 7 | 3 | 10 | |
| DA-MF8 | 8 | 8 | 4 | 12 | |
| DA-MF10 | 10 | 10 | 4 | 14 | |
| DA-MF12 | 12 | 10 | 4 | 14 | |
| DA-MF16 | 16 | 10 | 4 | 14 | |
| DA-MFA6 | 6 | 7 | 3 | 10 | |
| DA-MFA8 | 8 | 8 | 4 | 12 | |
| DA-MFA10 | 10 | 10 | 4 | 14 | |
| DA-MFA12 | 12 | 10 | 4 | 14 | |
| DA-MFA16 | 16 | 10 | 4 | 14 | |
Indicator insert
| COD. | G | H | I | |
|---|---|---|---|---|
| ID-F6 | 3,8 | 10 | M2,5 | |
| ID-F8 | 5 | 12 | M3 | |
| ID-F10 | 6 | 14 | M3 | |
| ID-F12 | 7 | 14 | M4 | |
| ID-F16 | 9 | 14 | M4 | |
| ID-FA6 | 3,8 | 10 | M2,5 | |
| ID-FA8 | 5 | 12 | M3 | |
| ID-FA10 | 6 | 14 | M3 | |
| ID-FA12 | 7 | 14 | M4 | |
| ID-FA16 | 9 | 14 | M4 | |
