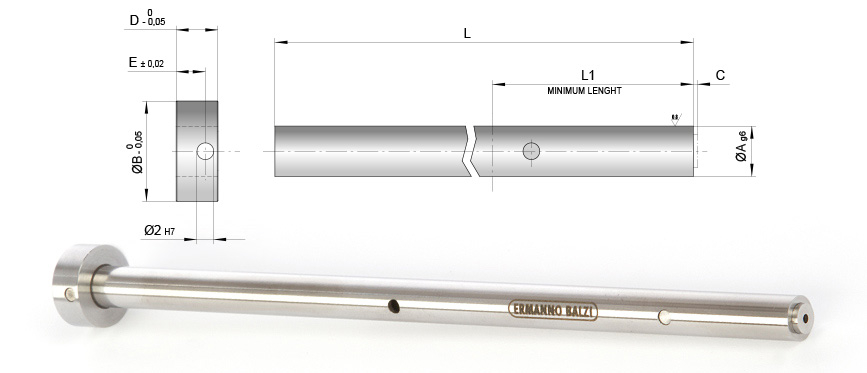

Gas venting ejector pin SGDE
The gas venting ejector pin SGDE incorporates the dynamic venting technology based on a simple mechanical system allowing the gas to escape from a venting hole that automatically closes under the pressure of the plastic flow front. The venting ejector pin can be placed inside the cavity where the filling pattern produces gas traps or at last filling point. The venting hole isn't affected by mold deposits, thanks to the high venting capacity counter pressure of the air inside the cavity is dramatically reduced.
| COD. |  |
|---|---|
| SGDE-605-300 |  |
| SGDE-607C-300 | |
| SGDE-608-300 | |
| SGDE-805-300 | |
| SGDE-807C-300 | |
| SGDE-808-300 | |
| SGDE-1005-300 | |
| SGDE-1007C-300 | |
| SGDE-1008-300 | |
| SGDE-1205-600 | |
| SGDE-1207C-600 | |
| SGDE-1208-600 | |
| SGDE-1405-600 | |
| SGDE-1407C-600 | |
| SGDE-1408-600 | |
| SGDE-1610-780 | |
| SGDE-1610A-780 | |
| SGDE-1610C-780 | |
| SGDE-1615-780 | |
| SGDE-1610LV-780 | |
| SGDE-1610ALV-780 | |
| SGDE-1610CLV-780 | |
| SGDE-1615LV-780 | |
| CONFIGURATOR | |
